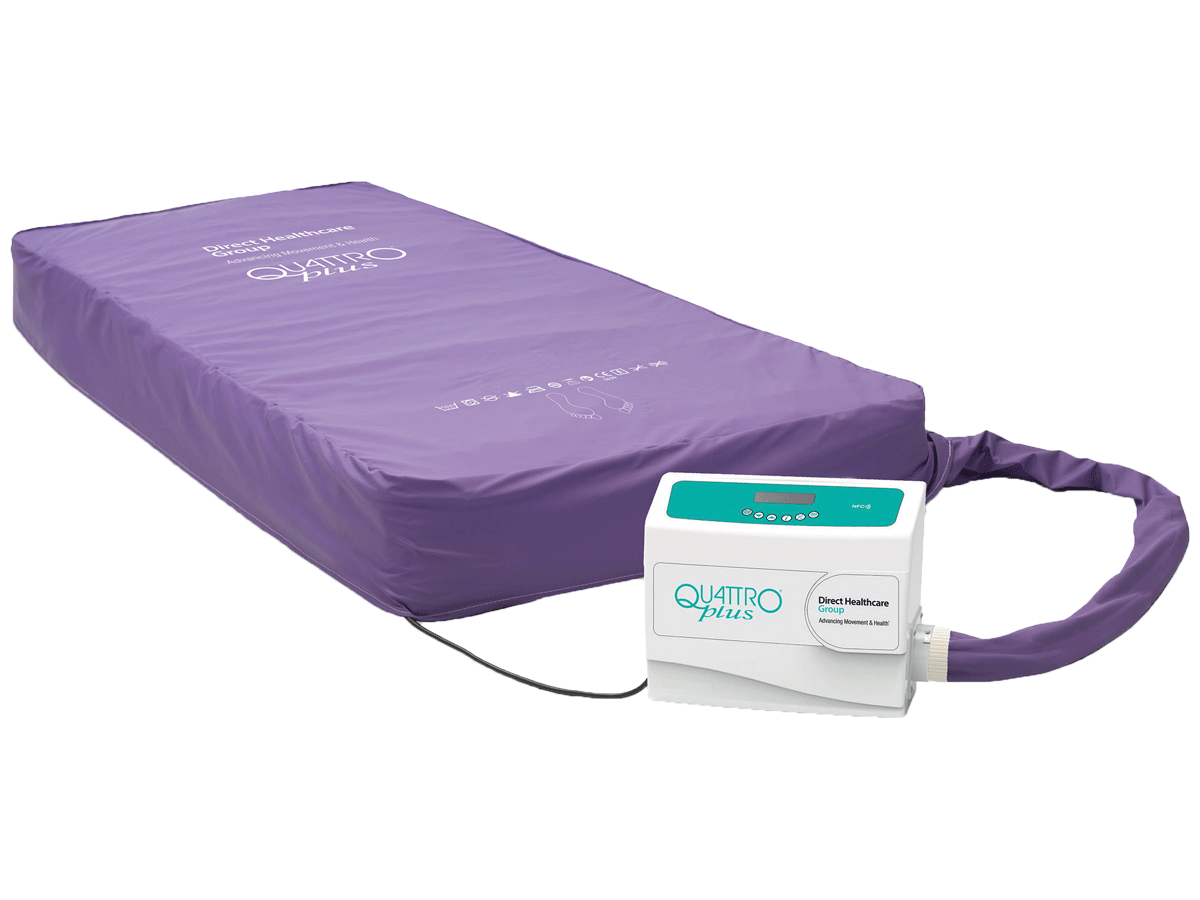

Talley Quattro Plus Mattress Replacement System

The Quattro Plus is a mattress replacement system for patients at very high risk of developing pressure ulcers and to manage existing pressure damage. The active 1-in-4 alternating air cell cycle supports 75% of the patient’s body at all times on groups of three inflated cells. The fourth cell deflates sufficiently to redistribute pressure and encourage tissue reperfusion.

• Active 1-in-4 cycle: 75% of the patient's body supported at all times
• Ortho-Differential Support: Results in the firmer outer edge and more of a feeling of security

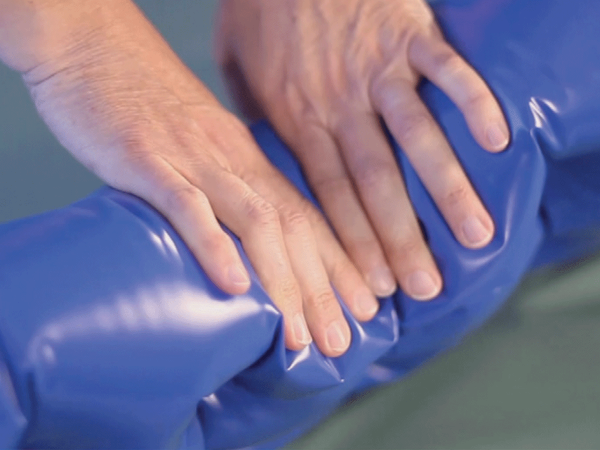

• Multi-stretch cover with welded seams: Waterproof | moisture-vapour permeable
• Micro-climate management: "low air loss" feature reduces moisture build-up and lowers the humidity level
• Fully launderable: Reduce the risk of cross-contamination
• CPR function: Rapid deflation valve removes air from mattress to enable CPR procedures
• Transport facility: Unpowered support for up to 4 hours

Width: 88cm
Height: 18cm
Length: 195cm
Product Weight: 9.4kg
Warranty: 2 years
S.W.L: 200kg
Power Unit Weight: 4.0kg
No. of Cells: 30
Regulatory Compliance: ISO 13485 | IEC 60601-1 | IEC 60601-1-2
